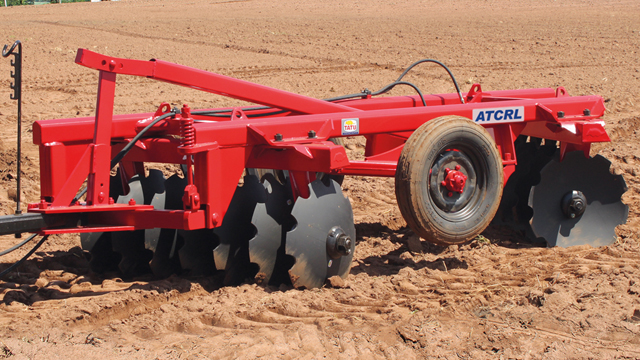

6009 ATCRL – Light Wheel Offset Disk Harrow
The model 6009 ATCRL – Light Wheel Offset Disk Harrow, because of its light weight and smaller diameter of the disc blades, is ideally suited for soil preparation of large crop areas after the harvest. The 6009 ATCRL will efficiently incorporate, speeding up its decay thereby increasing soil fertility. Standart Features: • Heat treated boron steel notched disc blades; • Rugged 1.1/2” round, heat treated alloy, steel disc gang axles; • Cast iron disc spacer spools; • Two single 600 x 16 – 6 ply rib implements tires for sizes 14 and 16 blades; • Two single 750 x 16 – 10 ply rib implements tires for sizes 18 blades size and up; • Adjustable working position; • Rugged built frame and gang carriers; • Adjustable disc gang angles; • Stabilizer bar for front and rear disc gangs leveling; • Adjustable heavy duty disc scrapers; • Greasable or oil bath disc gang bearing assemblies; • Hydraulic controlled depth gauge wheels; • Adjustable drawbar, drawbar plates and offset bar; • Standard tool kit.
